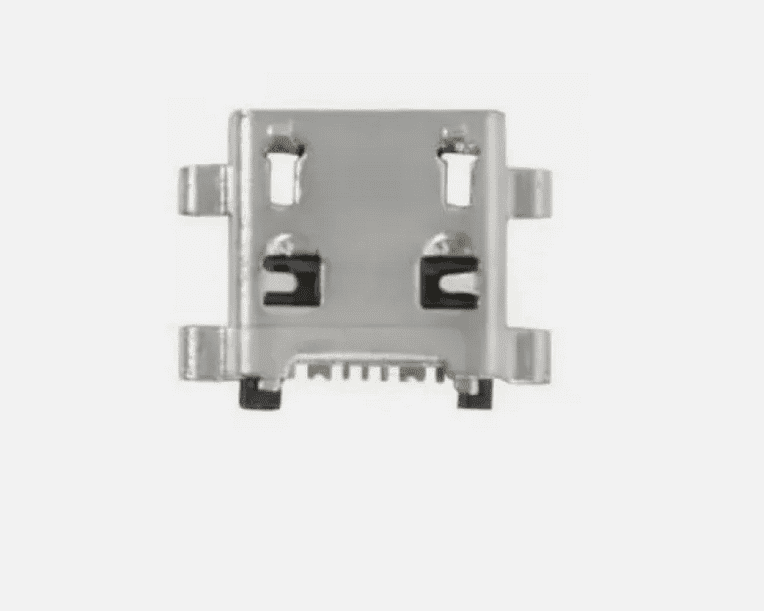

For Karbonn Jumbo K9 Micro USB Charging Port Connector Socket

If your Karbonn Jumbo K9 is struggling to charge, disconnects when the cable moves, or refuses to connect to a computer, the Micro USB socket may be worn, loose, or damaged. This replacement part is a Micro USB charging port connector socket designed to restore stable power input and reliable USB data connection.

Many “charging problems” start small: the phone charges only at an angle, the plug feels sloppy, or the battery percentage increases very slowly. Over time, repeated plugging/unplugging can weaken the connector, crack solder joints, or damage the port’s internal pins. Replacing the port is a common fix when cleaning the socket and trying different cables no longer helps.

Jumbo K9 charging port fault symptoms

• Charging cuts in and out when the cable is touched or moved
• The Micro USB plug feels loose, wobbly, or does not click in firmly
• Slow charging even with a known-good adapter and cable
• Computer does not detect the phone for data transfer
• Charging icon appears briefly, then disappears

Micro USB charging socket replacement part details

• Part type: Micro USB connector socket (charging + data)
• Use: Repair a damaged USB port on the device
• Included: 1x connector socket (as pictured)

Compatibility and matching the correct USB connector

Model: Karbonn Jumbo K9. Please compare your existing port with the listing images before ordering. Micro USB ports can look similar but may differ in pin layout, mounting legs, and body shape. Matching the connector style helps ensure a clean fit on your board and reduces installation issues.

Tip: If you’re unsure, remove the back cover and visually compare the metal housing, side legs, and the number/position of solder points on your original port. Getting the correct connector is just as important as the soldering quality.

Diagnose the issue before replacing the charging jack

Before you replace any hardware, it’s worth doing a few quick checks. Sometimes the problem is a worn cable, debris in the socket, or a weak power adapter. These checks can save time and help confirm the USB port is actually the fault.

1) Try a known-good cable and adapter

• Test with another Micro USB cable that charges other devices reliably
• Use a different wall adapter (not a laptop USB port)
• Check if charging improves when using a high-quality cable

2) Inspect and clean the Micro USB port carefully

• Turn the phone off completely
• Use a bright light to check for lint or dust packed inside
• Clean gently using a wooden toothpick or plastic tool (avoid metal objects)

3) Check for physical looseness

If the socket moves when you insert the cable, or the connector looks tilted inside the housing, that’s a strong sign the port’s mounting points or solder joints have failed.

Installation notes (micro-soldering required)

This is a solder-in replacement part. Installation typically requires micro-soldering equipment and experience working with small components. If you are not comfortable with soldering electronics, a local phone repair technician can fit the part for you.

Recommended tools

• Soldering iron with a fine tip (or hot air station if preferred)
• Flux (important for clean joints and reduced heat stress)
• Solder wick/braid for removing old solder
• Tweezers and plastic pry tools
• Isopropyl alcohol for cleaning flux residue
• Magnification (loupe or magnifying lamp) for pin inspection

Basic replacement overview

1. Power off the device and disconnect the battery if possible
2. Disassemble carefully to access the board and charging port area
3. Apply flux and remove the old port (avoid lifting pads/tracks)
4. Clean pads with wick and re-tin lightly
5. Position the new Micro USB connector socket and solder mounting legs first
6. Solder the data/power pins with minimal heat and plenty of flux
7. Inspect for bridges (shorts) and confirm solid joints

After-install checks

Once the port is installed, test charging and data connection before fully reassembling the phone. This saves time if any adjustment is needed.

• Check the cable fit: it should feel firm and stable
• Confirm the phone shows charging consistently without movement sensitivity
• Test data sync by connecting to a computer (if supported)
• Watch for overheating at the port area (a sign of a short or bad joint)

Common questions about Micro USB port repair

Will this fix “charging slowly”?

It can, especially if the original port has worn pins or cracked solder joints. However, slow charging can also be caused by a weak adapter, poor cable quality, battery health issues, or board-level charging circuitry problems.

My phone doesn’t charge at all — is the port always the cause?

Not always. A dead battery, damaged charging IC, broken tracks/pads on the board, or a damaged battery connector can also stop charging. If the port is visibly loose or damaged, replacing it is a sensible first step.

Does this part include a flex cable?

No — this is the connector socket only, intended to be soldered onto the board (as pictured).

Why buy from OtusBargains

• Quality-checked replacement parts
• Fast dispatch from Ireland
• 30-Day Money-Back Guarantee for peace of mind
• Helpful support if you need help matching the correct connector

Related phone parts and accessories

• Phone & Tablet Parts (connectors, ports, internal components)
• Cables & Chargers (try a new cable first if your old one is worn)

External repair guide (visible clickable link)

If you want a general guide on charging port repairs, see:

https://www.ifixit.com/Wiki/Android_Charging_Port_Repair

Note: If your original port has lifted pads or damaged tracks, a standard replacement may not work without board repair (jumper wires or pad reconstruction). In that case, a technician can usually advise after inspection.

Keyword note: This listing is for the Jumbo K9 charging port replacement (Micro USB socket connector) intended to restore normal charging and USB connection on the Karbonn Jumbo K9.
